Servoflex SFF SS K

The new SFF model in the Single Flex design, revised in 2018, impresses with its compact design and high torsional stiffness. Through the disk pack angular and axial misalignment can be compensated. With the new integrated clamping system, larger bore combinations with high concentricity can be achieved.

Max. 18‘000 rpm
High concentric clamp hubs
Silent at high speed
High torsional stiffness
100 to 1‘000 Nm

PDF Datasheet PDF Catalog 3D Data

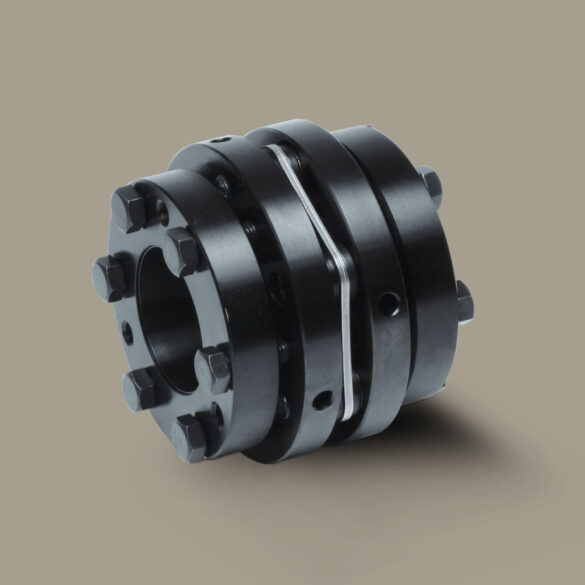

Dics pack coupling Servoflex SFF SS-K by Miki Pulley


Model	Rated torque (Nm)	Misalignment parallel (mm)	Misalignment angular (°)	Misalignment axial (mm)	Max. rpm (min^-1)	Torsional stiffness (Nm/rad)	Axial stiffness (N/mm)	Inertia (kg·m²)	Mass (kg)	3D
SFF-070SS-100N	100	0.02	1	± 0.5	18000	240000	484	0.66 × 10^-3	0.92
SFF-080SS-150N	150	0.02	1	± 0.5	17000	120000	96	1.21 × 10^-3	1.03
SFF-080SS-200N	200	0.02	1	± 0.5	17000	310000	546	1.11 × 10^-3	1.26
SFF-090SS-300N	300	0.02	1	± 0.6	15000	520000	321	1.75 × 10^-3	1.48
SFF-100SS-450N	450	0.02	1	± 0.65	13000	740000	540	2.56 × 10^-3	1.87
SFF-120SS-600N	600	0.02	1	± 0.8	11000	970000	360	5.33 × 10^-3	2.5
SFF-140SS-800N	800	0.02	1	± 1.0	10000	1400000	360	10.28 × 10^-3	4.66
SFF-140SS-1000N	1000	0.02	1	± 1.0	10000	1400000	360	14.70 × 10^-3	5.01

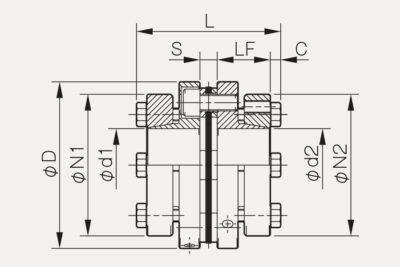

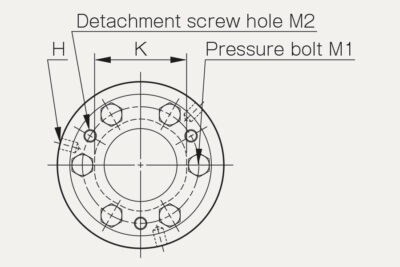

Dimensions Dics pack coupling Servoflex SFF SS-K

Abmessungen Lamellenkupplung Servoflex SFF SS-K

Unit [mm]


Model	d1 Min.	d1 Max.	d2 Min.	d2 Max.	D	L	LF	S	C	K	M1	M1 Nm	3D
SFF-070SS-100N	18	35	18	35	68	62.9	23.5	5.9	5	38	6-M6	10
SFF-080SS-150N	22	35	22	38	78	69.3	25.5	8.3	5	37	4-M6	10
SFF-080SS-200N	22	38	22	38	78	68.7	25.5	7.7	5	42	6-M6	10
SFF-090SS-300N	28	48	28	48	88	69.3	25.5	8.3	5	50	6-M6	10
SFF-100SS-450N	32	50	32	50	98	75.2	27.5	10.2	5	56	6-M6	10
SFF-120SS-600N	35	65	35	70	118	75.2	27.5	10.2	5	68	6-M6	10
SFF-140SS-800N	35	45	35	80	138	94.6	36.5	10.6	5.5	78	6-M8	24
SFF-140SS-1000N	48	75	48	80	138	94.6	36.5	10.6	5.5	78	6-M8	24
