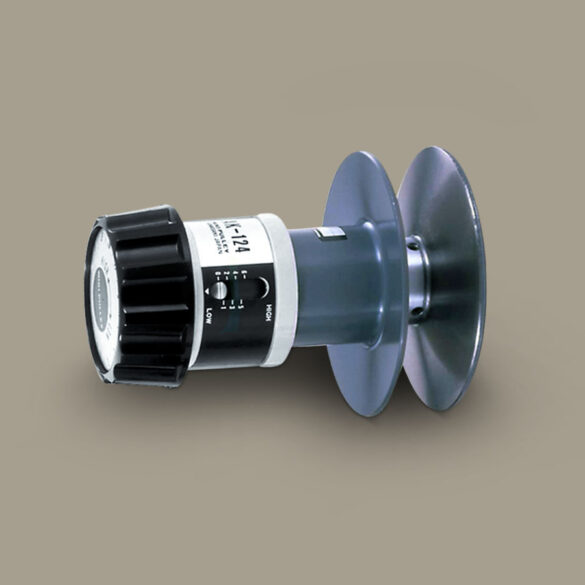

Pulley AP
The Speed Change Pulley AP is a further development of Miki Pulley’s first belt transmission. In the latest version, the speed can be adjusted while the shaft distance remains the same. The belts are standard V-Belts.
- For motors from 0.2 to 0.37 kW
- Transmission ratio 1 : 1.9 to 1 : 2.4
- Standard V-Belt
- Constant shaft distance
- RoHS compliant
| Model | Motor | Driven side speed changer | Belt | Output ratio | rpm Output 50Hz | Torque Nm Output 50Hz | rpm Output 60Hz | Torque Nm Output 60Hz | Mass (kg) |
| AP-86 | 0.2 kW4P | P-86 | A | 1 : 2.2 | 950 〜 2150 | 1.6 〜 0.7 | 1140 〜 2590 | 1.4 〜 0.6 | 1.7 |
| AP-86 | 0.2 kW4P | P-98 | A | 1 : 2 | 820 〜 1720 | 1.9 〜 0.9 | 990 〜 2060 | 1.6 〜 0.8 | 1.7 |
| AP-98 | 0.4 kW4P | P-98 | A | 1 : 2 | 1000 〜 2050 | 3.1 〜 1.5 | 1200 〜 2460 | 2.6 〜 1.3 | 1.9 |
| AP-98 | 0.4 kW4P | P-124 | A | 1 : 1.9 | 890 〜 1710 | 3.5 〜 1.8 | 1070 〜 2060 | 2.9 〜 1.5 | 1.9 |
| AP-124 | 0.75kW4P | P-124 | B | 1 : 2.2 | 950 〜 2150 | 6.1 〜 2.7 | 1140 〜 2590 | 5.1 〜 2.3 | 3.2 |
| AP-124 | 0.75kW4P | P-164 | B | 1 : 2 | 810 〜 1660 | 7.2 〜 3.5 | 970 〜 2000 | 6.0 〜 2.9 | 3.2 |
| AP-164 | 1.5 kW4P | P-164 | C | 1 : 2.4 | 920 〜 2230 | 12.7 〜 5.2 | 1110 〜 2680 | 10.5 〜 4.4 | 4.8 |
| AP-164 | 1.5 kW4P | P-218 | C | 1 : 2 | 680 〜 1360 | 17.2 〜 8.6 | 810 〜 1640 | 14.4 〜 7.1 | 4.8 |

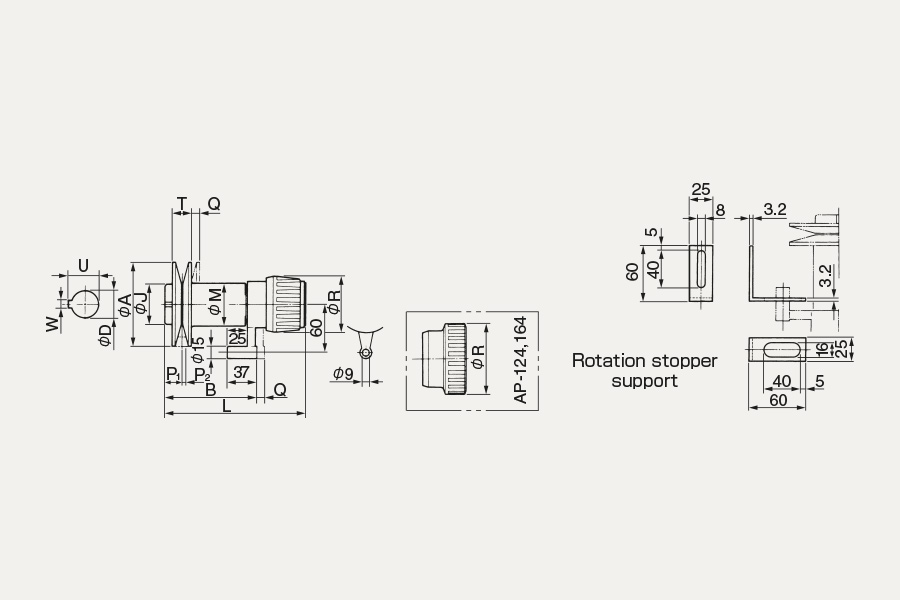

Unit [mm]
| Model | A | B | J | L | M | P1 | P2 | Q | R | T | D | W | U | Max. P.D. | Min. P.D. |
| AP-86 | 86 | 93 | 46 | 156 | 54 | 18 | 3.5 | 7 | 70 | 18 | 11 | − | − | 77 | 51 |
| AP-98 | 98 | 103 | 50 | 166 | 54 | 19 | 3.5 | 7 | 70 | 20 | 14 | 5 | 16 | 89 | 62 |
| AP-124 | 124 | 126 | 68 | 196 | 62 | 22 | 5 | 10 | 88 | 24 | 19 | 6 | 21.5 | 113 | 75 |
| AP-164 | 164 | 137 | 68 | 211 | 66 | 25 | 7 | 14.5 | 88 | 30 | 24 | 8 | 27 | 150 | 96 |
