Pulley P

The model P of the Speed Change Pulleys is a stand-alone solution. Standard V-Belts are used for transmitting the torque. The maximum diameter is 218 mm for this series.

Transmission power 0.2 to 3.7 kW
Transmission ratio 1 : 1.4 to 1 : 1.6
Standard V-Belt
Pulley diameter from 86 to 218 mm
RoHS compliant

PDF Datasheet PDF Katalog

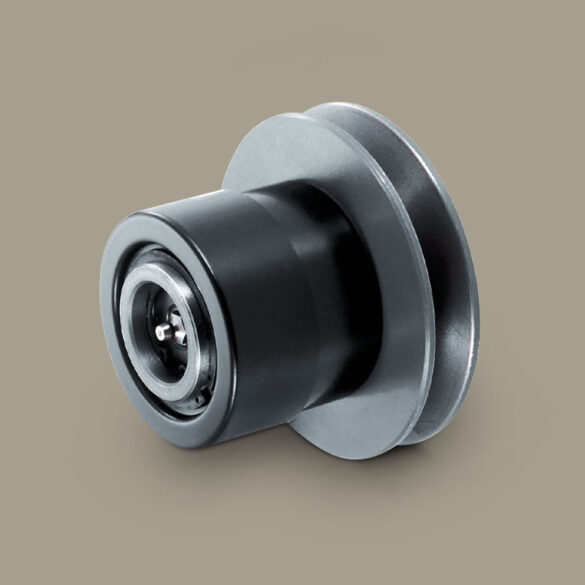

Stand-alone Belt-type Stepless Speed Changer P by Miki Pulley


Model	Motor	Ratio rpm	Belt	kW High Speed	kW Low Speed	Mass (kg)
P-86	0.2 〜 0.4 kW	1 : 1.5	A	0.7	0.3	1.1
P-98	0.4 〜 0.75 kW	1 : 1.4	A	1.2	0.4	1.8
P-106	0.4 〜 0.75 kW	1 : 1.6	B	1.3	0.6	2
P-124	0.75 〜 1.5 kW	1 : 1.5	B	1.8	0.8	3
P-164	1.5 〜 2.2 kW	1 : 1.5	C	3.2	1.2	6
P-218	2.2 〜 3.7 kW	1 : 1.4	C	6.2	3.2	14

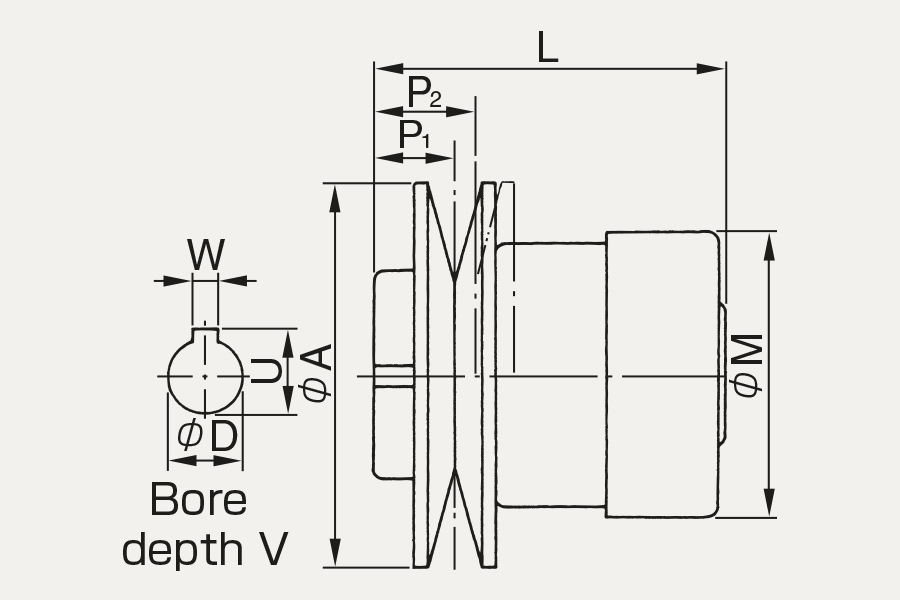

Dimensions Speed changer with pulley model P

Unit [mm]


Model	A	P₁	P₂	L	M	D min.	D max.	V	Max. P.D.	Min. P.D.
P-86	86	18	21.5	78	63	11	14	30	77	51
P-98	98	19	22.5	85	73	14	19	40	89	62
P-106	106	21	26	96	73	14	19	40	95	58
P-124	124	22	27	101	84	19	24	50	113	75
P-164	164	25	32	130	102	24	28	50	150	96
P-218	218	27	34	163	132	28	28	60	204	150
