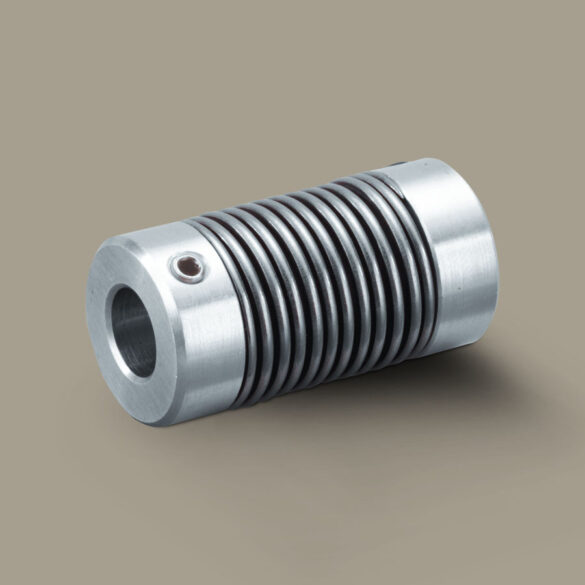

The Baumannflex LM is a miniflex coupling which can be moved in all directions. The force is transmitted between two shafts by its three-layer spring body made of steel wire and hubs made of aluminium. It can be used in a temperature range of -40 °C up to +120 °C and convinces with its large compensation functions.
| Model | Rated torque (Nm) | Misalignment parallel (mm) | Misalignment angular (°) | Misalignment axial (mm) | Max. rpm (min-1) | Torsional stiffness (Nm/rad) | Inertia (kg·m2) | Mass (kg) |
| LM-6 | 0.5 | 1 | 8 | ± 1 | 6000 | 0.77 | 5.10 × 10-7 | 0.02 |
| LM-6-1 | 0.5 | 3 | 14 | ± 1.5 | 6000 | 0.40 | 7.65 × 10-6 | 0.03 |
| LM-9 | 1.0 | 2.5 | 8 | ± 1 | 6000 | 1.55 | 2.55 × 10-5 | 0.05 |
| LM-9-1 | 1.0 | 4 | 14 | ± 1.5 | 6000 | 0.80 | 3.06 × 10-6 | 0.06 |
| LM-14 | 2.0 | 3 | 8 | ± 1 | 6000 | 3.10 | 7.65 × 10-5 | 0.09 |
| LM-14-1 | 2.0 | 4.5 | 14 | ± 1.5 | 6000 | 1.60 | 9.44 × 10-6 | 0.11 |

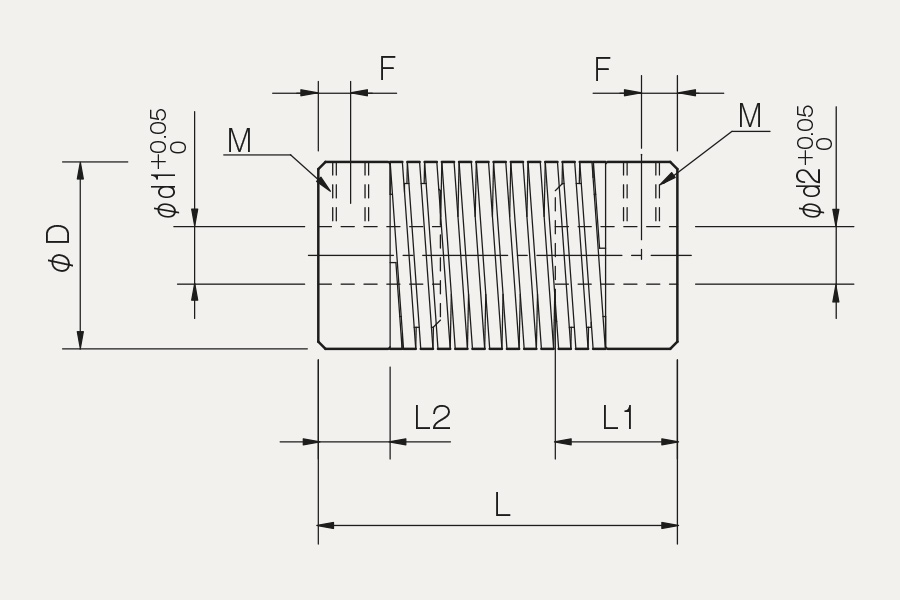

Unit [mm]
| Model | d1/d2 Min. | d1/d2 Max. | D | L | L1 | L2 | F | K |
| LM-6 | 5 | 6 | 14 | 35 | 12 | 6.5 | 3.5 | M |
| LM-6-1 | 5 | 6 | 14 | 50 | 12 | 6.5 | 3.5 | M4 |
| LM-9 | 6 | 9 | 20 | 40 | 14 | 7.5 | 4 | M4 |
| LM-9-1 | 6 | 9 | 20 | 60 | 14 | 7.5 | 4 | M4 |
| LM-14 | 9 | 14 | 26 | 50 | 17 | 10 | 5 | M5 |
| LM-14-1 | 9 | 14 | 26 | 70 | 17 | 10 | 5 | M5 |
