Brake 111

Due to the excellent responsiveness it is possible to realize fast switching processes. The optimal installation form can be selected from the three types of armature assemblies with different shapes.

From 5 to 320 Nm
Different armature options
RoHS compliant
Zero Backlash
Rotation up to 8‘000 rpm

PDF Datasheet PDF Catalog 3D Data

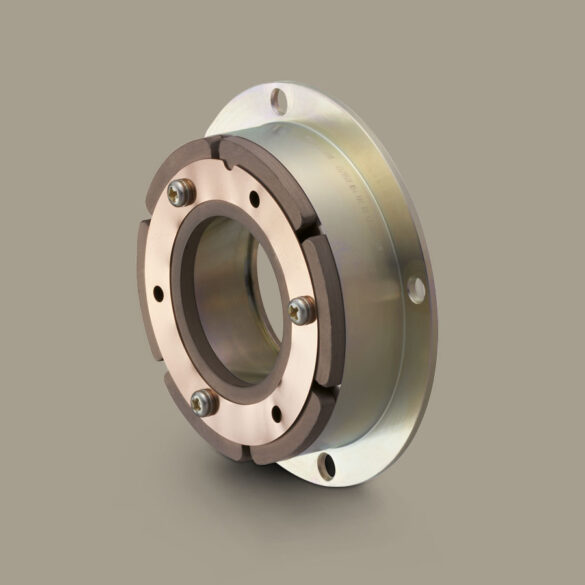

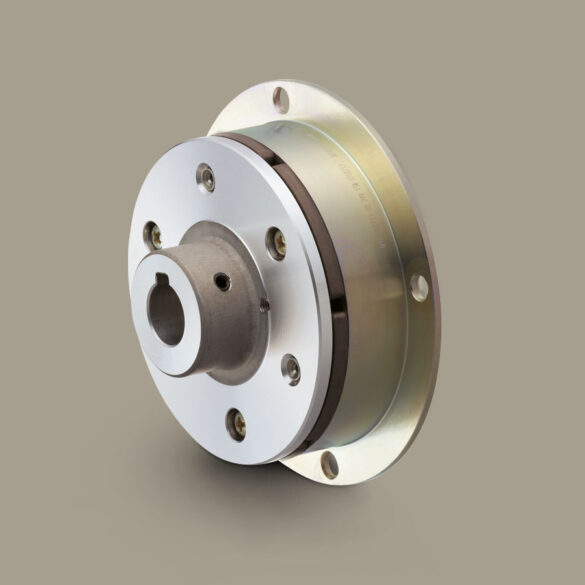

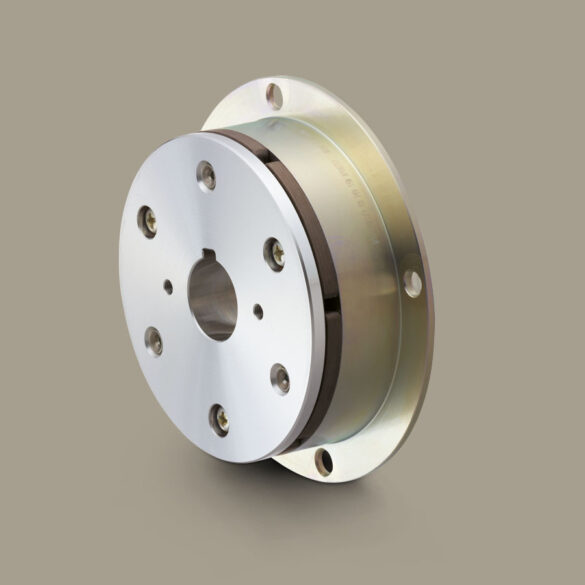

Electromagnetic brake 111 by Miki Pulley


Model	Rated torque (Nm)	Heat class	Max. rpm (min^-1)	Moment of inertia J (kg·m²)	Total braking energy E_T (J)	Pull in time t_a (s)	Torque build up t_p (s)	Mass (kg)	3D
111-06-13G	5	B	8000	4.23 × 10^-5	36 × 10⁶	0.015	0.033	0.28
111-06-12G				6.03 × 10^-5				0.32
111-06-11G				6.03 × 10^-5				0.32
111-08-13G	10	B	6000	1.18 × 10^-4	60 × 10⁶	0.016	0.042	0.5
111-08-12G				1.71 × 10^-4				0.58
111-08-11G				1.71 × 10^-4				0.58
111-10-13G	20	B	5000	4.78 × 10^-4	130 × 10⁶	0.018	0.056	0.91
111-10-12G				6.63 × 10^-4				1.07
111-10-11G				6.63 × 10^-4				1.07
111-12-13G	40	B	4000	1.31 × 10^-3	250 × 10⁶	0.027	0.090	1.68
111-12-12G				1.81 × 10^-3				1.97
111-12-11G				1.81 × 10^-3				1.97
111-16-13G	80	B	3000	4.80 × 10^-3	470 × 10⁶	0.035	0.127	3.15
111-16-12G				6.35 × 10^-3				3.45
111-16-11G				6.35 × 10^-3				3.45
111-20-13G	160	B	2500	1.37 × 10^-2	10 × 10⁸	0.065	0.200	5.9
111-20-12G				1.90 × 10^-2				7.1
111-20-11G				1.90 × 10^-2				7.1
111-25-13G	320	B	2000	3.58 × 10^-2	20 × 10⁸	0.085	0.275	10.5
111-25-12G				4.83 × 10^-2				12.2
111-25-11G				4.83 × 10^-2				12.2

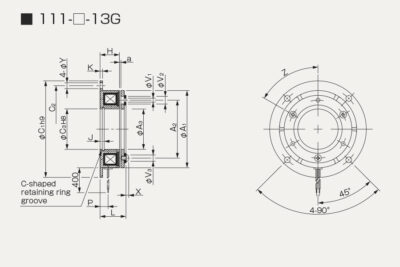

Dimensions electromagnetic brake 111-13G

Unit [mm]


Model	A₁	A₂	A₃	C₁	C₂	C₃	Y	H	J	K	L	a	3D
111-06-13G	63	46	34.5	80	72	35	5	18	3.5	2.1	22	0.2
111-08-13G	80	60	41.7	100	90	42	6	20	4.3	2.6	24.5	0.2
111-10-13G	100	76	51.5	125	112	52	7	22	5	3.1	28.1	0.2
111-12-13G	125	95	61.5	150	137	62	7	24	5.5	3.6	31	0.3
111-16-13G	160	120	79.5	190	175	80	9.5	26	6	4.1	35	0.3
111-20-13G	200	158	99.5	230	215	100	9.5	30	7	5.1	41.4	0.5
111-25-13G	250	210	124.5	290	270	125	11.5	35	8	6.1	47.9	0.5

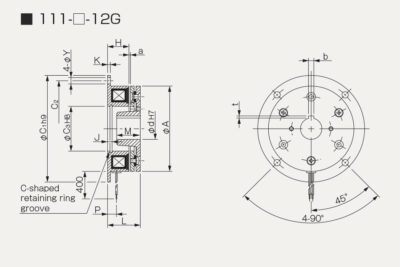

Dimensions electromagnetic brake 111-12G

Unit [mm]


Model	d H7	A	C₁	C₂	C₃	Y	H	K	L	a	3D
111-06-12G	12-15	63	80	72	35	5	18	2.1	22	0.2
111-08-12G	15-20	80	100	90	42	6	20	2.6	24.5	0.2
111-10-12G	20-25	100	125	112	52	7	22	3.1	28.1	0.2
111-12-12G	25-30	125	150	137	62	7	24	3.6	31	0.3
111-16-12G	30-40	160	190	175	80	9.5	26	4.1	35	0.3
111-20-12G	40-50	200	230	215	100	9.5	30	5.1	41.4	0.5
111-25-12G	50-60	250	290	270	125	11.5	35	6.1	47.9	0.5

Dimensions electromagnetic brake 111-11G

Unit [mm]


Model	d H7	A	C₁	C₂	C₃	Y	H	K	L	a	3D
111-06-11G	12-15	63	80	72	35	5	18	2.1	22	0.2
111-08-11G	15-20	80	100	90	42	6	20	2.6	24.5	0.2
111-10-11G	20-25	100	125	112	52	7	22	3.1	28.1	0.2
111-12-11G	25-30	125	150	137	62	7	24	3.6	31	0.3
111-16-11G	30-40	160	190	175	80	9.5	26	4.1	35	0.3
111-20-11G	40-50	200	230	215	100	9.5	30	5.1	41.4	0.5
111-25-11G	50-60	250	290	270	125	11.5	35	6.1	47.9	0.5
