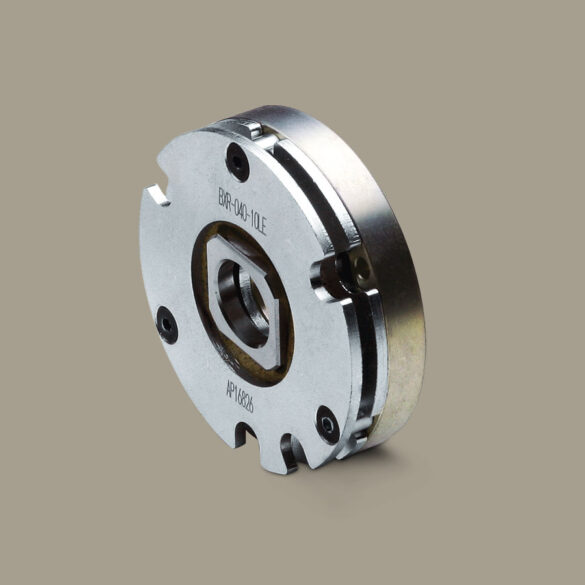

The BXR-LE series impresses with its extremely compact design in combination with a constant torque to the sister model BXW. This performance was achieved by new friction lining and excitation technology.
| Model | Rated torque (Nm) | Heat class | Max. rpm (min-1) | Moment of inertia J (kg·m2) | Max braking energy Ebal (J) | Total braking energy ET (J) | Pull in time (24V DC) ta (s) | Release time (7V DC) tar (s) | Mass (kg) | 3D |
| BXR-015-10LE | 0.06 | F | 6000 | 3.24 × 10-8 | 5 | 1000 | 0.02 | 0.02 | 0.03 | |
| BXR-020-10LE | 0.14 | F | 6000 | 7.01 × 10-8 | 15 | 3000 | 0.035 | 0.02 | 0.06 | |
| BXR-025-10LE | 0.32 | F | 6000 | 1.96 × 10-7 | 15 | 3000 | 0.035 | 0.02 | 0.08 | |
| BXR-035-10LE | 0.62 | F | 6000 | 6.20 × 10-7 | 87 | 17000 | 0.05 | 0.02 | 0.12 | |
| BXR-040-10LE | 1.32 | F | 6000 | 1.29 × 10-6 | 87 | 17000 | 0.06 | 0.02 | 0.16 | |
| BXR-050-10LE | 3.2 | F | 6000 | 2.57 × 10-6 | 200 | 40000 | 0.06 | 0.02 | 0.4 |
Available voltage: 24 V DC

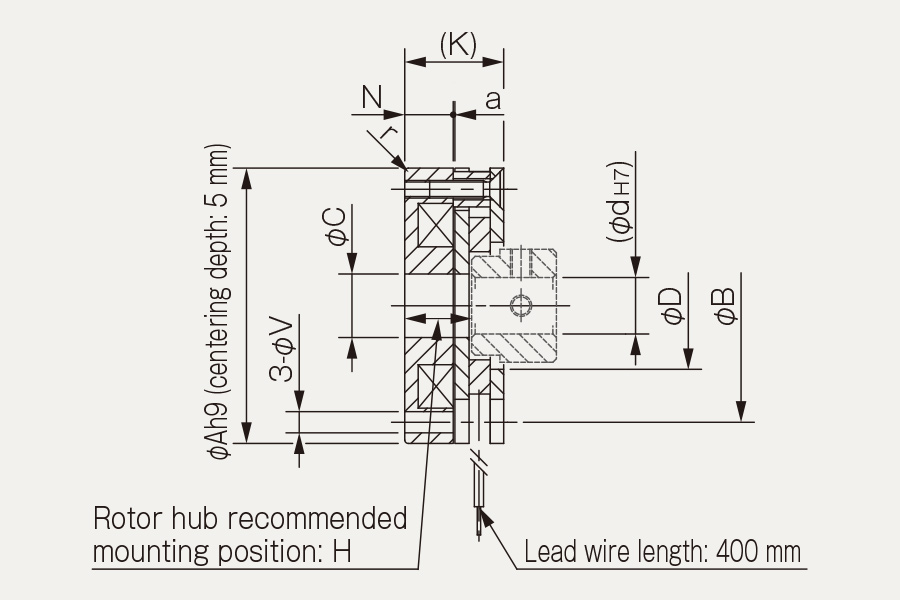

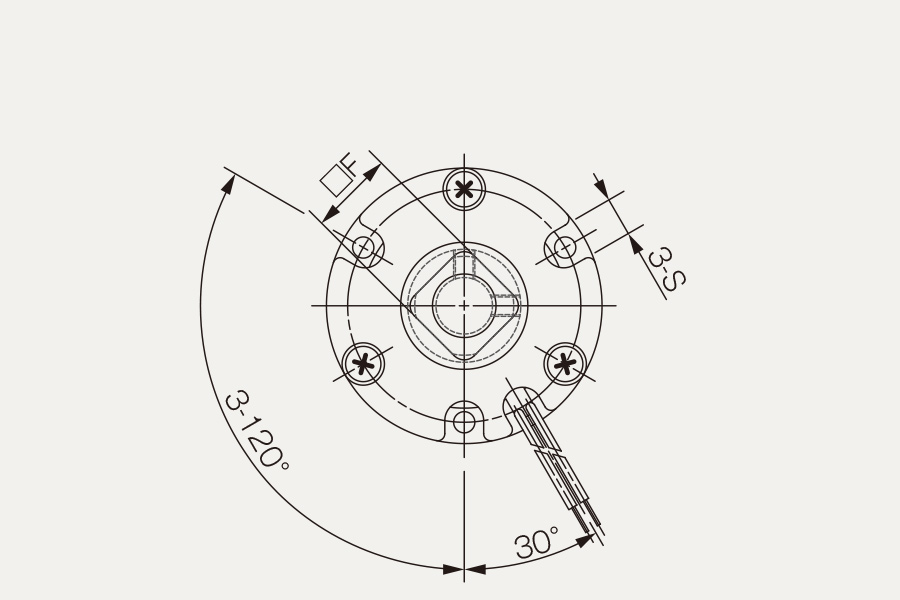

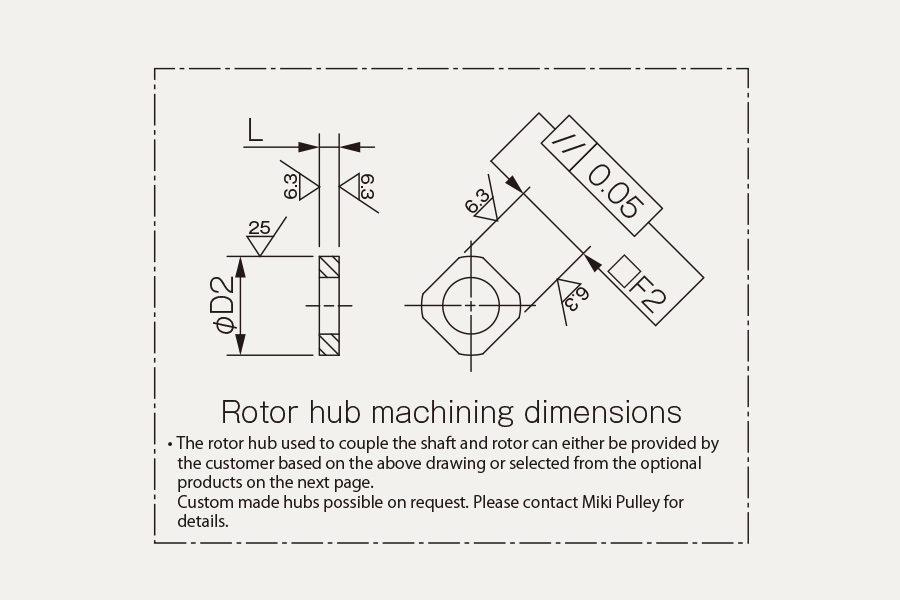

Unit [mm]
| Model | A | r | B | C | D | d max. | F | S | V | K | N | a | 3D |
| BXR-015-10LE | 26 | R0,5 | 22 | 7 | 12 | 6 | 8 | 4.3 | 2.3 | 14 | 7 | 0.1 | |
| BXR-020-10LE | 32 | R0,5 | 28 | 9 | 16 | 8 | 12 | 5 | 2.3 | 14 | 7 | 0.1 | |
| BXR-025-10LE | 39 | R0,5 | 33 | 9 | 18 | 8 | 12 | 5.5 | 3 | 14 | 7 | 0.1 | |
| BXR-035-10LE | 48 | R0,5 | 42 | 15 | 28 | 14 | 19 | 5.5 | 3 | 14 | 7 | 0.1 | |
| BXR-040-10LE | 56 | R0,5 | 50 | 15 | 27 | 14 | 19 | 6.5 | 3.4 | 14.5 | 7.4 | 0.1 | |
| BXR-050-10LE | 71 | R0,5 | 65 | 22 | 37 | 20 | 25 | 8 | 4.4 | 19 | 10.5 | 0.1 |
Due to the steadily increasing degree of automation, especially in the industrialized countries, the demand for industrial and collaborative robots is a strongly growing industry segment. Extremely important are the high positioning accuracy as well as the safety of such…
Used in the field of robotics, handling automation or for the drive of linear actuators, the requirements to the new series of Servomotors is rising daily. For the safety application in a servomotor, especially in the case of a power shortage or emergency stop, Miki Pulley…
The Industry of medical technology only accepts the highest standards in safety and precision. In case of a malfunction a person’s health could seriously be affected. Devices such as computed tomography, surgical stands and patient beds often contain more technology…
