The DMB is a factory set torque limiter. The torque value can’t be adjusted later and thus protects against handling errors during installation and usage.
Back to overview
Learn more
Learn more Learn more

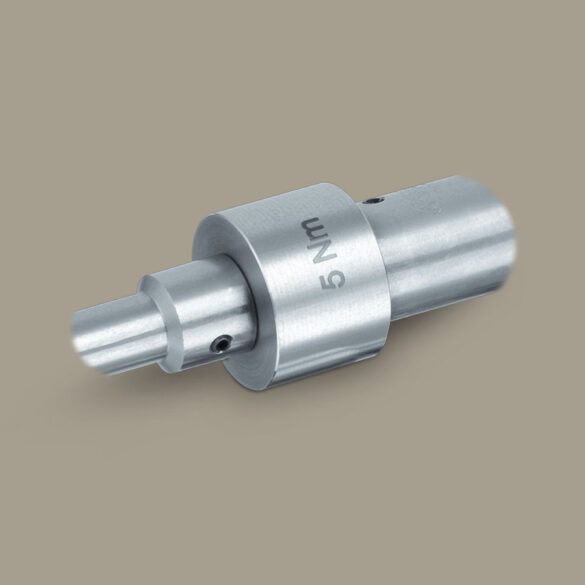

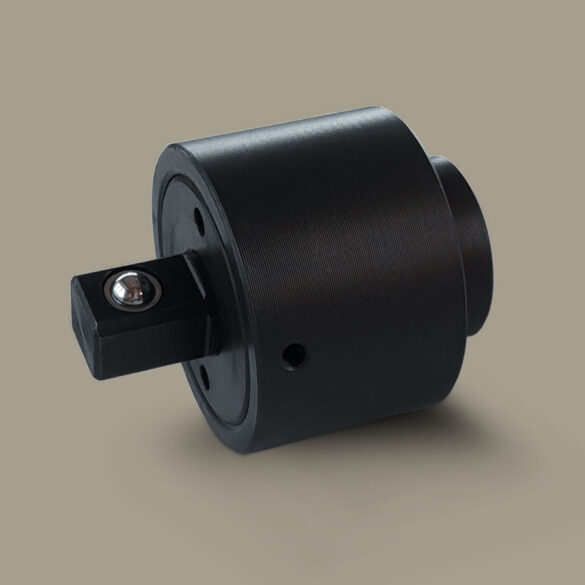

Torque limiter DMB
- Fixed torque value
- Square connections
- Customization possible
- RoHs compliant
- From 3 to 90 Nm
| Model | Torque min. (Nm) | Torque max. (Nm) | Drive A Square | Drive B Square | Max. rpm (min-1) | Mass (kg) | 3D |
| DMB-1 | 3 | 30 | 3/8" | 3/8" | 60 | 0.22 | |
| DMB-2 | 30 | 90 | 1/2" | 1/2" | 60 | 0.6 |

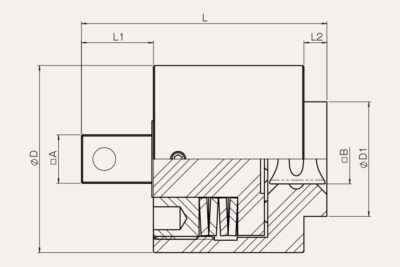

Unit [mm]
| Model | A | B | L | L1 | L2 | D | D1 | 3D |
| DMB-1 | 3/8" | 3/8" | 46 | 14 | 7 | 36 | 22 | |
| DMB-2 | 1/2" | 1/2" | 65 | 17.5 | 6 | 46 | 30 |
