Helix couplings – precise shaft connections for dynamic applications

Helix couplings are high-precision shaft couplings characterized by their one-piece design and helix-shaped structure. They are made of a homogeneous material and feature a spiral-shaped slot geometry that creates a defined elastic zone. This allows rotational movements to be reliably transmitted while simultaneously compensating for misalignments between shafts. Helix couplings operate wear-free, require little maintenance, and offer high dynamic stability with low bearing loads.

What is a Helix Coupling?

A helix coupling is a one-piece coupling that requires no moving parts. Thanks to its special helical structure, it simultaneously serves as both a flexible connection and a damping element. It is particularly suitable for applications where precision and repeatability are critical.

You can also find additional solutions for precise shaft connections in our category of disc pack couplings as well as in our selection of slit couplings.

How does a Helix coupling work?

The operation of a Helix coupling is based on the elastic deformation of its helical structure. This allows it to compensate for axial, radial, and angular shaft misalignments without compromising rotational motion. At the same time, the design ensures that torque is transmitted smoothly and with minimal vibration.

By carefully designing the spiral geometry, length, and web thickness, the mechanical properties can be precisely tailored to the specific application.

What are the advantages of Helix couplings?

Helix couplings offer a wide range of technical advantages. Thanks to their one-piece construction, they operate completely wear-free and require no maintenance. At the same time, they enable very precise torque transmission, even under high dynamic loads.

Furthermore, their elastic properties reduce the load on adjacent components, thereby contributing to a longer service life of the entire system. Their compact design also allows for use in confined installation spaces.

Where are Helix couplings used?

Helix couplings are used wherever rotational movements need to be transmitted and controlled with precision. Typical applications include encoders, servo motors, stepper motors, and positioning and control systems.

They are also used in general mechanical engineering, spindle drives, and equipment manufacturing due to their high precision and reliability.

What designs and configurations are available?

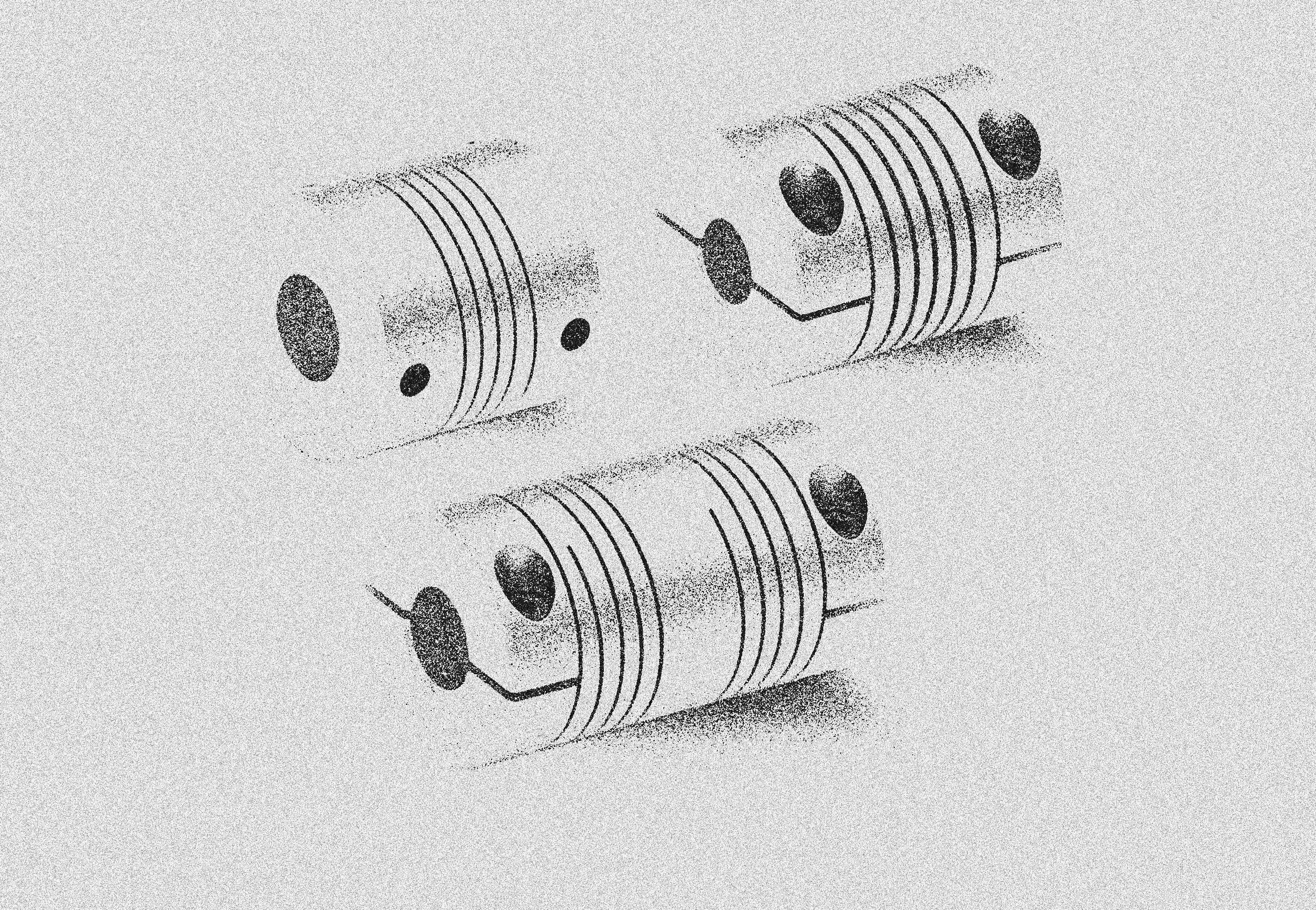

Helix couplings are available in various designs that can be adapted to specific requirements. A basic distinction is made between configurations with a through-bore and variants with a blind bore.

While couplings with a through-bore offer flexible mounting options, blind bore variants provide higher torsional stiffness and more compact designs.

In addition, helix couplings can be customized in terms of their geometry. This includes, among other things, the number of helical threads, the length of the helix, and the bore diameter. These parameters significantly influence the torque, stiffness, and misalignment compensation capability of the coupling.

What types of mounting are available?

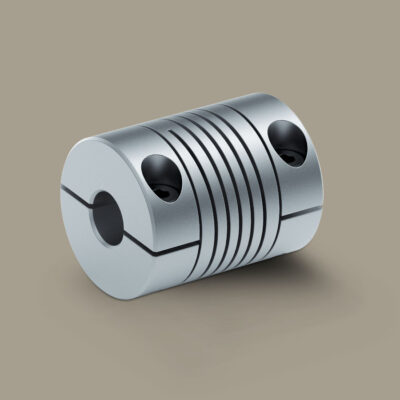

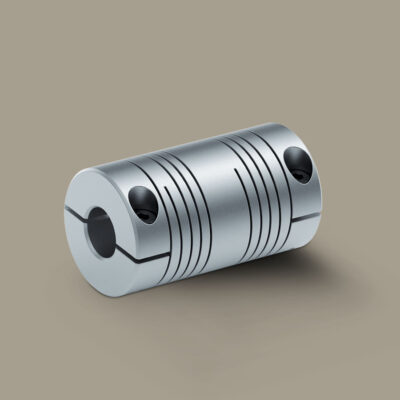

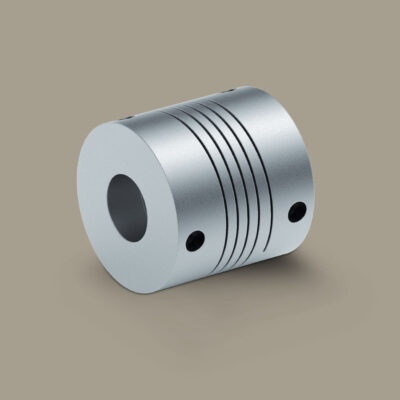

Various mounting options are available for shaft connections. As standard, Helix couplings are designed with clamping hubs or set screws. In addition, custom solutions such as keyways, flange connections, or special connection geometries can also be implemented.

In many applications, the clamping connection is sufficient to reliably transmit the required torque without the need for additional components.

What materials are used?

Helix couplings are typically manufactured from aluminum alloys or corrosion-resistant stainless steel. Depending on the application, however, other materials such as titanium or plastics can also be used, provided they are machinable.

This flexibility allows for optimal adaptation to different environmental conditions and requirements.

When is a Helix coupling the right choice?

Helix couplings are the ideal solution when a precise yet flexible shaft connection is required. They are particularly suitable for applications with high demands on positioning accuracy, dynamics, and maintenance-free operation.

Thanks to their ability to compensate for misalignment while reliably transmitting torque, they make an important contribution to the operational safety and efficiency of machines and systems.

Are custom Helix couplings available?

In addition to the standard series, Helix couplings offer extensive customization options. Geometries, materials, and connection types can be specifically tailored to the respective application.

By integrating multiple functions into a single component, not only can assembly effort and the number of parts be reduced, but total operating costs can also be sustainably lowered.
